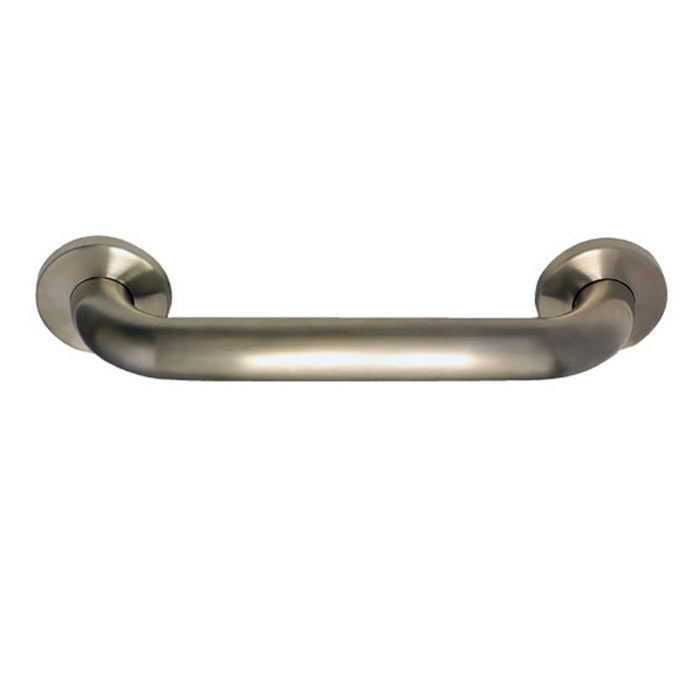

HC18 - 18" Satin Steel Grab Bar

1 1/2″ O.D. Concealed

• Lengths - 18″ and Satin
• Individually Polybagged with 2″ stainless steel screws
• Type 304 stainless steel with satin finish
• Tubing: ).50″ wall thickness (18 Gauge), heliarc welded to tubing
• Mounting Flanges: .078″ wall thickness (14 Gauge), heliarc welded to tubing
• Mounting flanges are 3″ in diameter and have 3 hole mount
• Length of Grab bar is measured from center of flange to center of flange
• Concealed flange covers are “snap and twist”
• All heavy-duty stainless steel grab bars have a 1 1/2″ wall clearance to meet ADA code requirements and are designed to withstand 1,000 lbs. push/pull, when properly installed
