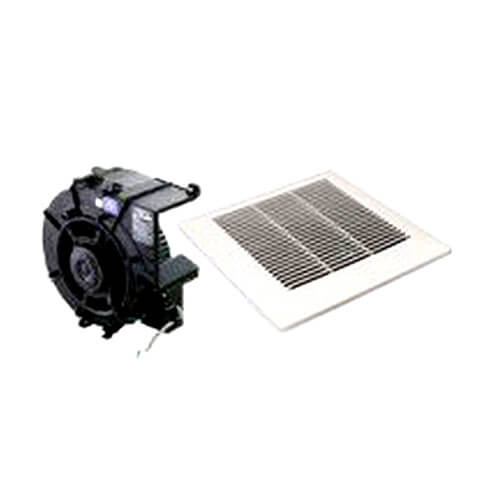

Panasonic FV-08VSB3 WhisperValue White 80 CFM Motor & Grille Contractor Pack
$ 58.37
WhisperValue White 80 CFM Motor & Grille Contractor Pack (1.0 Sone)
Ventilating fan shall be Low Noise ceiling or wall mount type rated for continuous run. Fan shall be ENERGY STAR® rated and certified by the Home Ventilation Institute (HVI). Evaluated by Underwriters Laboratories and conform to both UL and cUL safety standards.
Motor/Blower:
Housing:
Grille:
Ventilating fan shall be Low Noise ceiling or wall mount type rated for continuous run. Fan shall be ENERGY STAR® rated and certified by the Home Ventilation Institute (HVI). Evaluated by Underwriters Laboratories and conform to both UL and cUL safety standards.
Motor/Blower:
- Four–pole totally enclosed condenser motor rated for continuous run.
- Power Rating shall be 120 volts and 60 Hz.
- Fan shall be UL and cUL listed for tub/shower enclosure when used with a GFCI protected circuit and used in insulated ceiling (TYPE I.C)
- Motor equipped with thermal–cutoff fuse.
- Removable with permanently lubricated plug-in motor.
Housing:
- Rust proof paint, galvanized steel body.
- 4" oval, round compatible diameter duct.
- Optional 24 gauge steel, fire code rated 4" oval to 3" round duct adaptor sold separately (Model # FV-VS43R).
- Built in backdraft damper.
- Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing.
- Unique L-shaped bracket simplifies installation and provides strong support.
Grille:
- Attractive design using PP material.
- Attaches directly to housing with torsion springs.
